Field Kitchen
KP-125 is the main product of our enterprise, as it has gained popularity all
over the world. It has passed the test of time, field conditions, military
conflicts, natural disasters in many countries. Field Kitchen KP-125 is a
practical, low maintenance in use, reliable and very strong, since it is used
in mountainous and cross-country terrain in all climatic conditions. Its main
advantage over the field kitchens of other manufacturers is the operating fuel.
There are two types of fuel in our kitchen - that is wood and diesel fuel; you
can easily convert the fuel in a few minutes by removing the fuel
injectors. The kitchens of other manufacturers use only gas, but it is
difficult to obtain it in the field conditions.
Army Field Kitchen Productivity.
The dietary allowance has been designed for ultimate nutrition of 125
soldiers, accounting for very large portions. The menu per one person is: 500
ml of the first course (soup), main course – 900 g, fried meat 200 g, boiled water (coffee,
tea) 900 ml. One cooking cycle for 125 men takes 50-60 minutes. If you
reduce the portion, you can feed more people per one cooking cycle.
We would like to receive from you the following information:
1) What quantity you need.
2) What type of transport to deliver (road or sea transport). The delivery
by sea takes 30 days to any place in the world. 4 kitchen pieces can be placed
in a 40 foot-container. The transportation cost is ------USD per one 40
foot-container (Africa, Asia, and Middle East).
Over-the-road truck transport: 5 kitchen pieces can be placed. The delivery term
is 5 to 14 days.
The cost is --------- USD
We are ready to send you a trial consignment of the field kitchens within
14 days upon signing the contract and effecting the payment.
Army Field Kitchen KP-125 COST without delivery – --- USD
With delivery by sea – ---- USD
With delivery by over-the-road truck transport – --- USD
Design Features
The tanks for food preparation in the kitchen consist of:
1) Built-in 110-liter tank for hot water, there is a tap for easy pouring
drinks in the side of the kitchen.
2) Three portable tank-saucepans for cooking first and second courses with
the capacity of 57 litres.
3) Brazier- ting tin for frying meat, barbecue, etc.
Overall Dimensions of Kitchen on Undercarriage (Chassis),
mm:
·
length 3,824 mm
·
width 2,200 mm
·
transport height 1,620 mm
·
operating height 3,350 mm
·
gross weight 1,300 kg
Fuel consumption: wood 35 kg/hour; Diesel fuel 10 l/h
The field kitchen transportation is performed by the road freight transport
or off-road vehicle fitted for carrying trailers.
The completing units include field kitchen:
1.
|
Kitchen knife
|
1 pc.
|
2.
|
Vegetable knife
|
1 pc.
|
3.
|
Tin opener
|
1 pc.
|
4.
|
“Veselka” stick-stirrer
|
1 pc.
|
5.
|
Ladle, 0.9 litre, aluminium
|
1 pc.
|
6.
|
Scoop
|
1 pc.
|
7.
|
Board for cutting food
|
1 pc.
|
8.
|
Fork for taking out the meat
|
1 pc.
|
9.
|
Nozzle FK - 01
|
1 pc.
|
10.
|
Tap PP-6 (KR-25)
|
1 pc.
|
11.
|
Boiler cap gasket
|
1 pc.
|
12.
|
Gas nozzle
|
2 pcs.
|
13.
|
Nozzle gasket
|
2 pcs.
|
14.
|
Asbestos cord
|
0.5 m
|
15.
|
Tool bag
|
1 pc.
|
16.
|
Wrench
|
1 pc.
|
17.
|
Three-square file, ready-assembled
|
1 pc.
|
18.
|
Knife-sharpening brick
|
1 pc.
|
19.
|
Axe, construction use type
|
1 pc.
|
20.
|
Double-handed crosscut saw
|
1 pc.
|
21.
|
Wash-hand-stand
|
1 pc.
|
22.
|
Galvanized bucket
|
1 pc.
|
23.
|
Fuel priming funnel
|
1 pc.
|
24.
|
Petroleum hurricane lamp
|
1 pc.
|
25.
|
Pump RN-1
|
1 pc.
|
26.
|
Firebox door
|
2 pcs.
|
27.
|
Fire rake
|
1 pc.
|
28.
|
Cruet-stand of galvanized steel, for fish and meat
|
1 pc.
|
29.
|
Weighing scales, load-carrying ability - 10 kg.
|
1 pc.
|
30.
|
8 litre aluminium saucepan
|
1 pc.
|
31.
|
20 litre fuel canister
|
1 pc.
|
32.
|
Galvanized steel tank for fat
|
1 pc.
|
33.
|
Bolt M10x25
|
1 pc.
|
34.
|
Nozzle-cleaning needle
|
1 pc.
|
35.
|
Boiler flesh-brush
|
1 pc.
|
36.
|
Tank for vegetable oil (made of food-grade plastic)
|
1 pc.
|
37.
38.
|
Spare wheel
Tent
(tarpaulin - 2 canvases, stakes - 4 pcs., pegs - 23 pcs., ridgepoles - 4
pcs., iron sheets to the chimney hole – 2 pcs., window - 1 pc.)
LTD«Company«UKRSPETSREZERV»
Ukraine, 01030, Kiev Saksaganskogo str. 133а, t/f. +30(44)
235-90-76,
м.+380(50)38-38-5-38 e-mail: heli-spare@ukr.net
![]()
Oven in fiel kitchen image

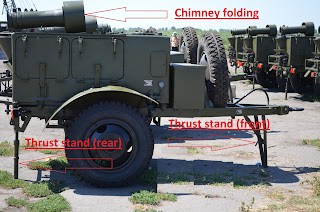

Chimney folding
Thrust stand
in mobile kitchen
Pan tank portable kitchen trailer

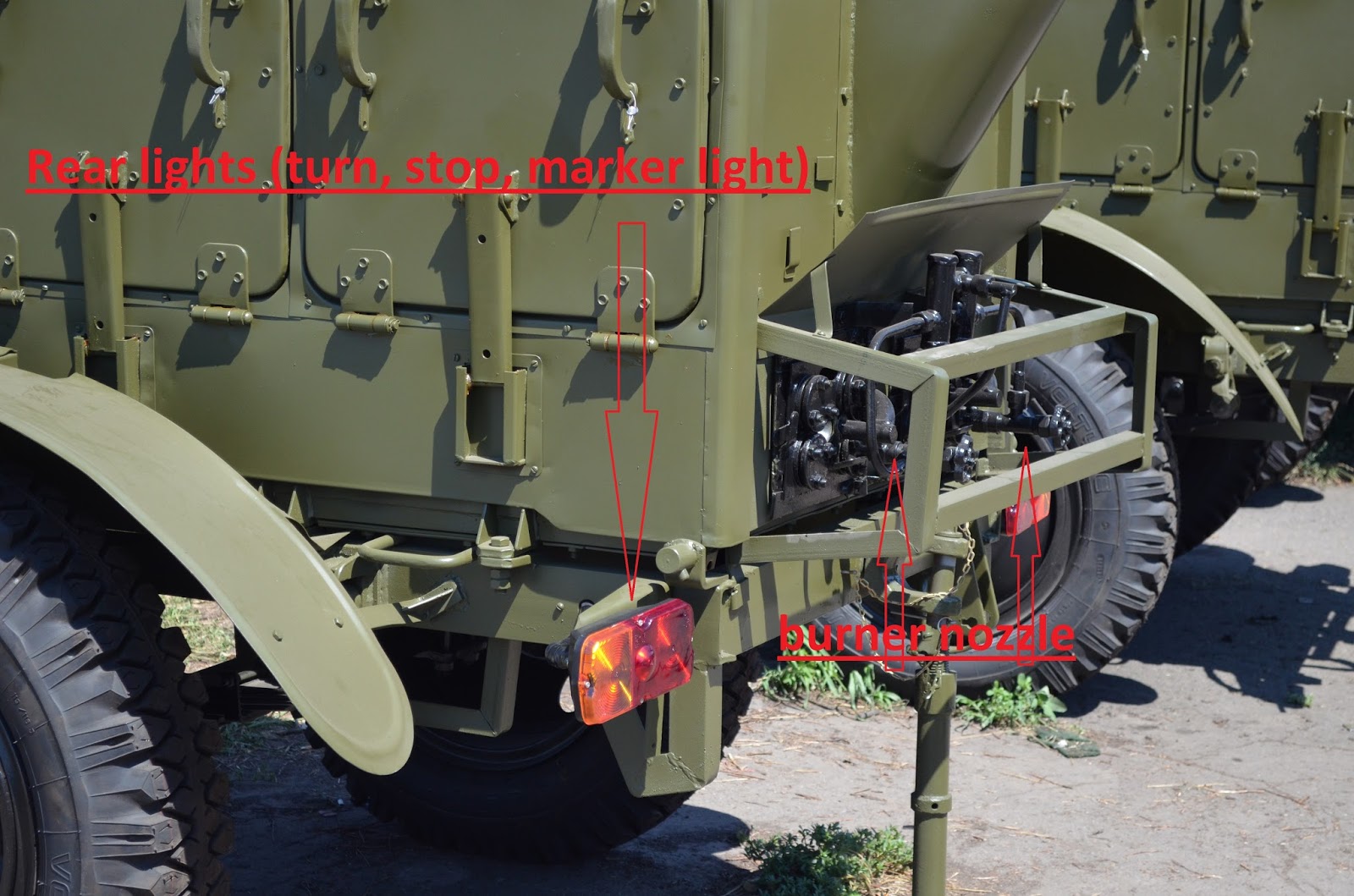

Rear lights in field kitchen image
Manometer in kitchen trailer
Pouring boiling water in field kitchens
Spare box, spare wheel kitchen
Plug electr. kitchen
Burner nozzle field kitchen image
Spare box second for mobile kitchen

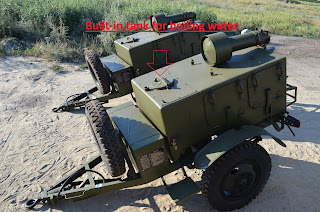

Built-in tank for boiling water kitchen trailer
Transportation army mobil kitchen image
Loading military mobil kitchen image
Fuel tank kitchen
|
